Color code map or territories

You can color code base map or territories using your data, for example by sales or customer count, or using demographic and Census data that is included in MapBusinessOnline. See following help articles to learn how to plot your data on map:

Learn more about the benefits of creating and using color coded maps for your business here.

  1. Click ‘Color code map’ on MapBusinessOnline toolbar.

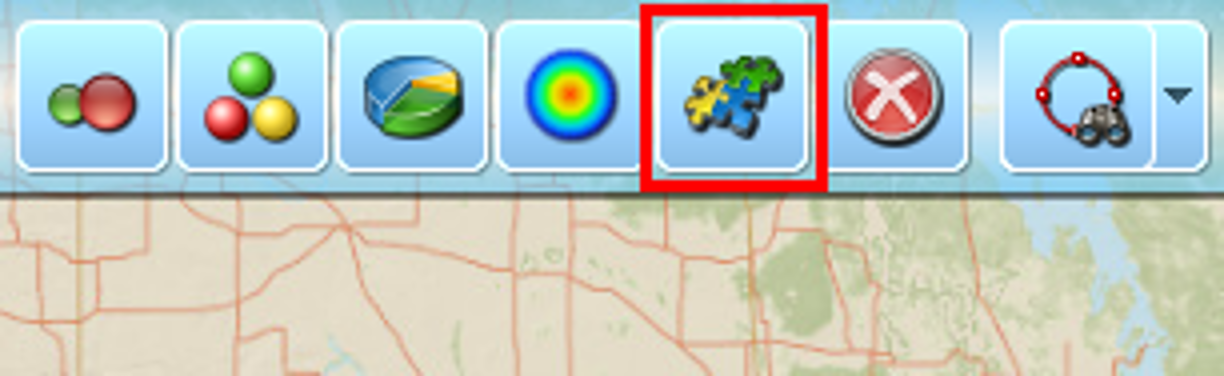

Color code map layer boundaries command
  1. On the first page select a layer to color code: territory layer, ZIP codes, counties, or states. In the example below we select counties. Click ‘Next’.

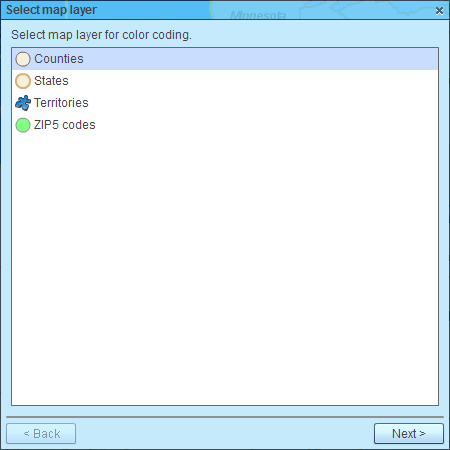

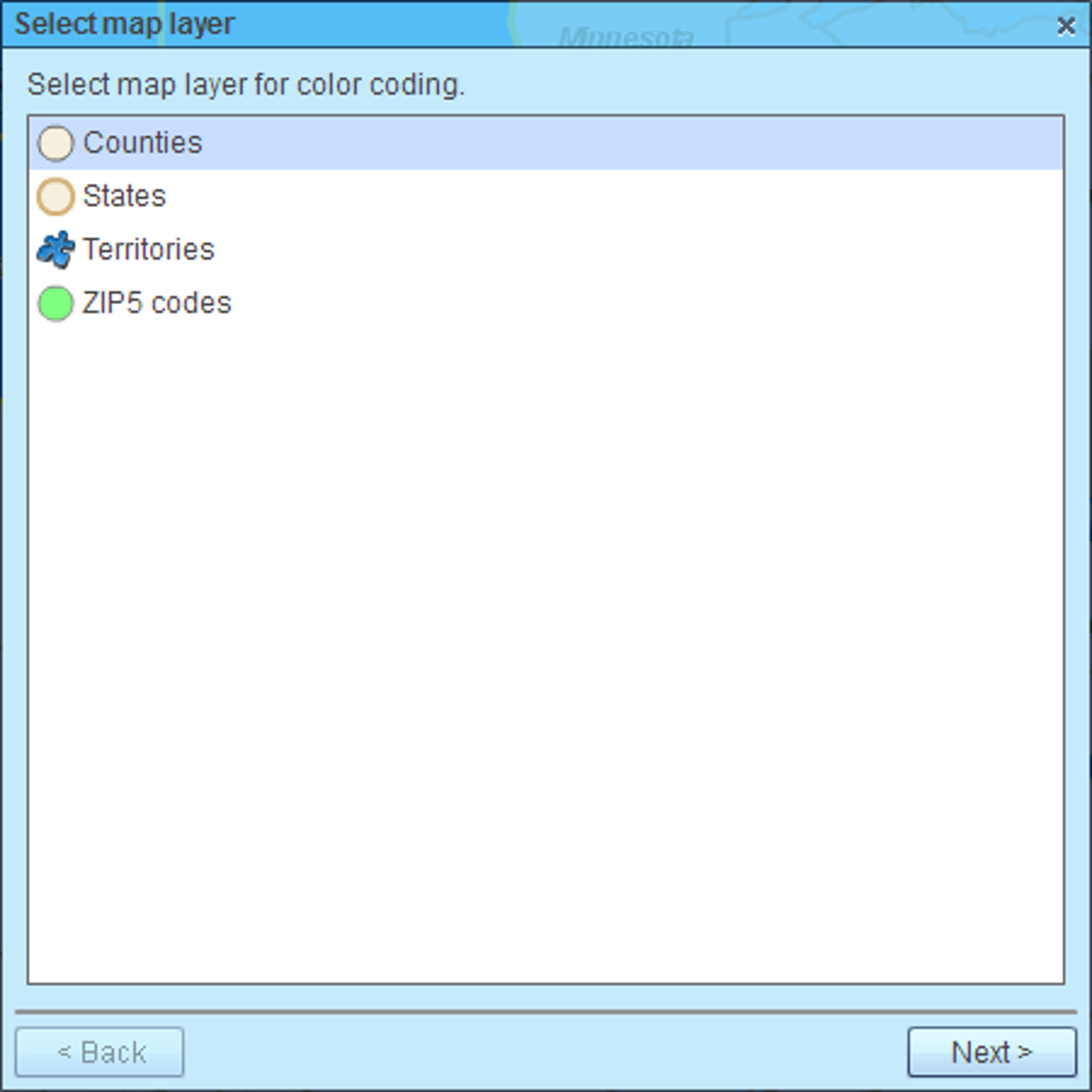

Select a layer to color code: territories, ZIP codes, counties, or states
  1. On the second page choose data for color-coding: supplied demographics or data from a plotted dataset (your business data). With your business data you can color-code map by count of customers or business locations, by average or total value of sales or another business variable per geography (state, county, ZIP code, etc) or territory. You can exclude empty values for text data or negative/positive/zero values for numeric data. There is also the option to use unique values for numeric data.

    Select number of color groups and then set min and max values and color for each group. In the example below counties with median household income in $11,528 - $36,120 range are assigned light green color.

    You may have a map area with data not falling into any color group. In MapBusinessOnline it is possible to control such map area display. In the example below counties with household income outside of any specified income range will draw with white fill.

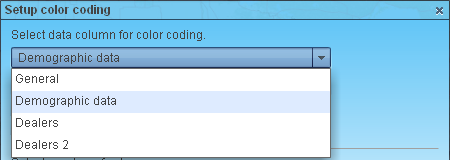

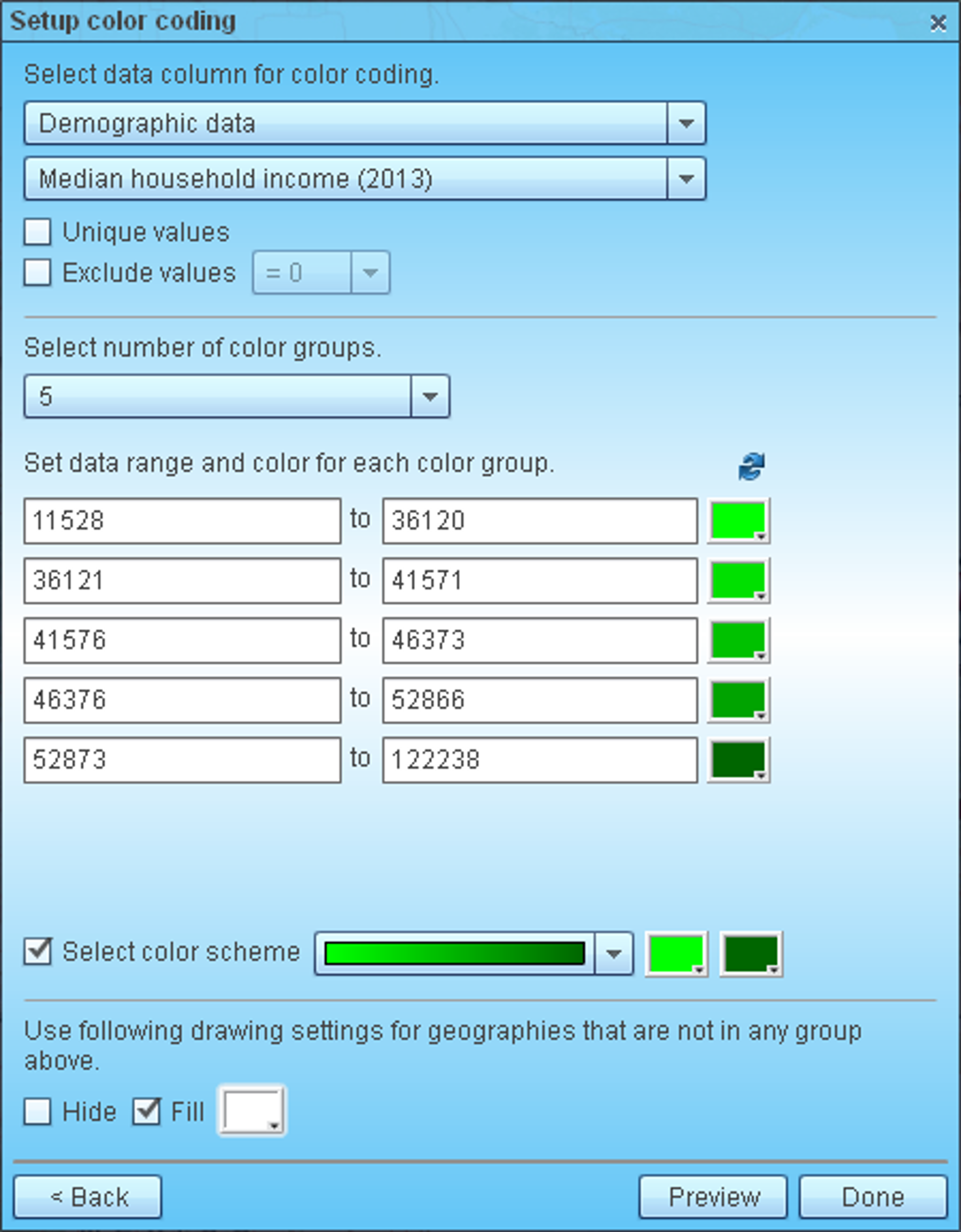

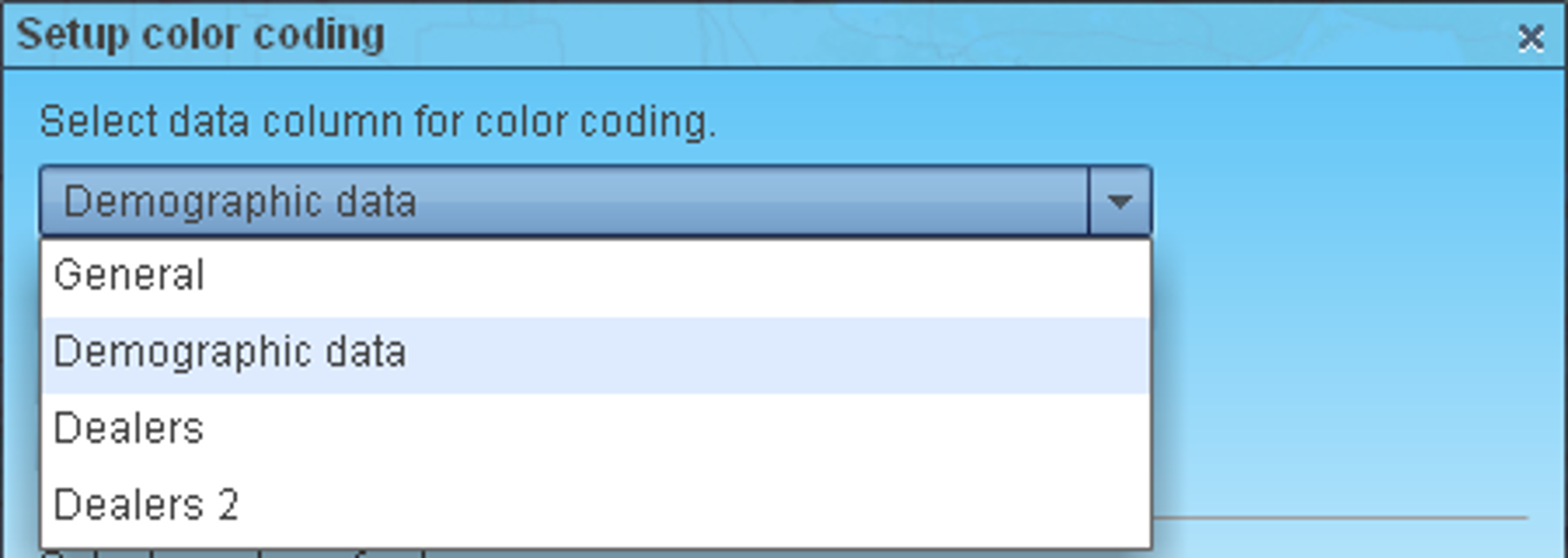

Setup color coding by demographics Setup color coding ranges and color scheme
  1. Click ‘Done’ to color-code map.

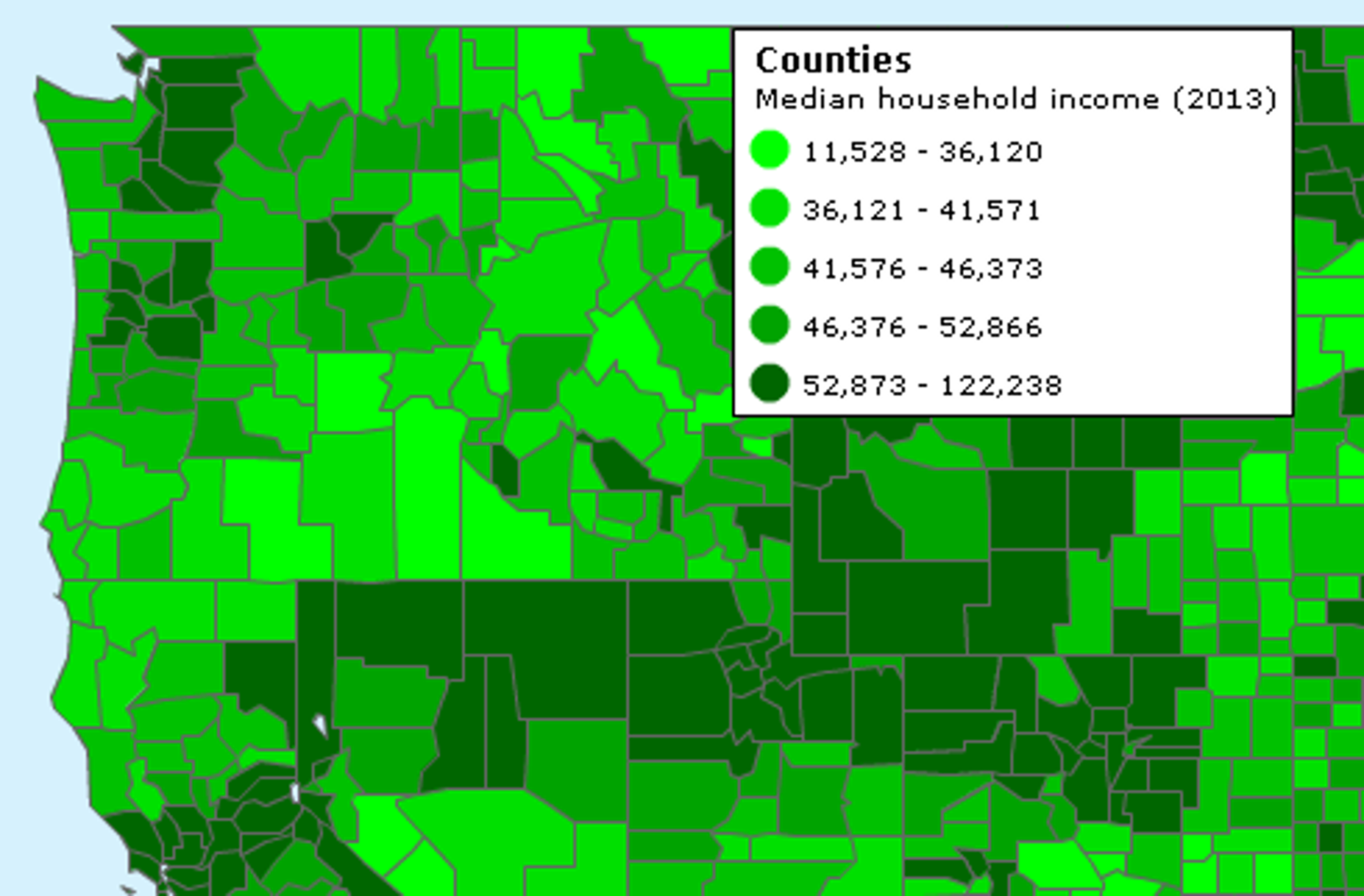

Example of color coded counties map
  1. Hover mouse cursor over any map area to see information about that area. Ctrl-click a map area to display its label.

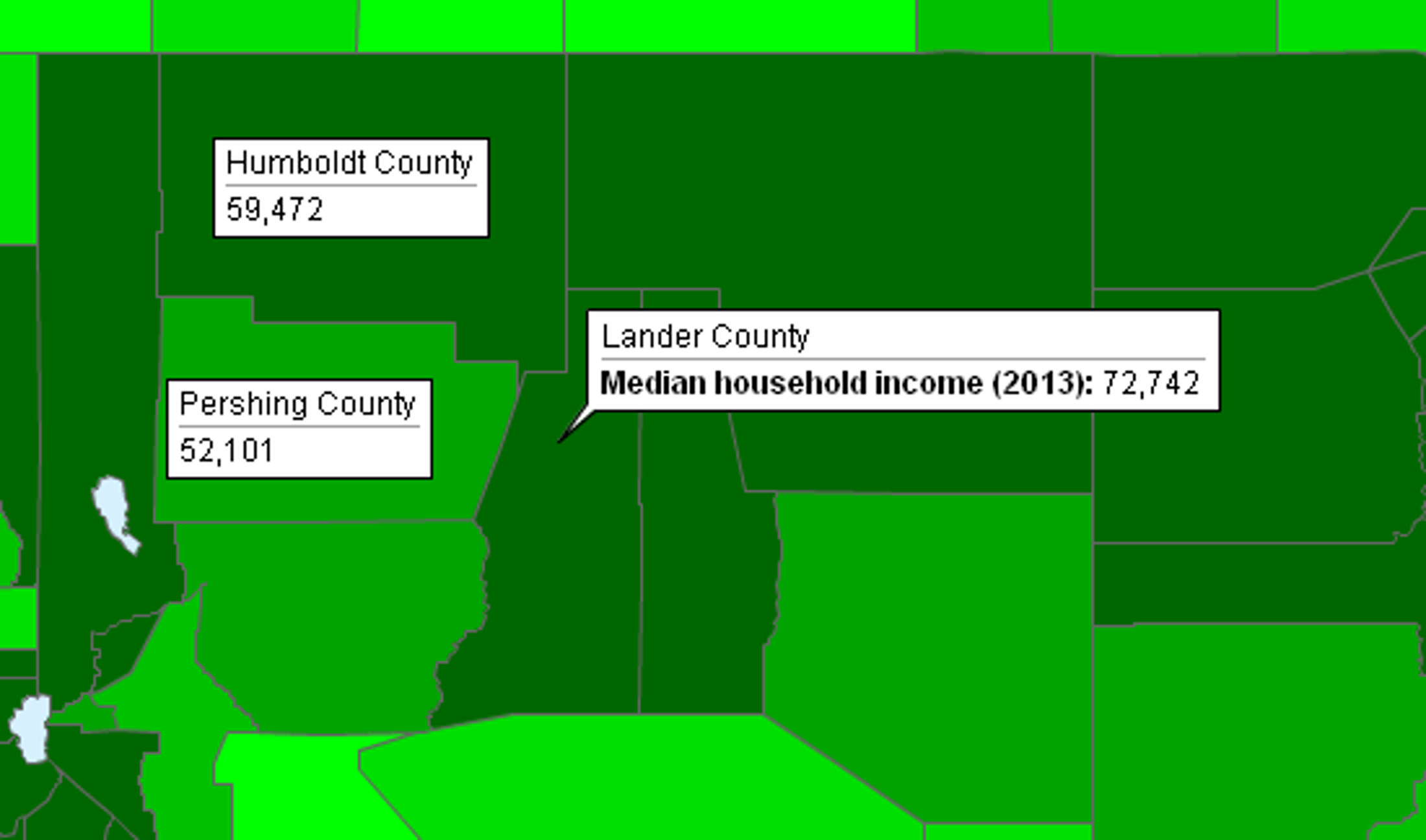

Add demographic data to a color coded map label
  1. Check out the following article to learn how to change labels for a map layer:
    Customize map layer labels
    Customize territory labels
